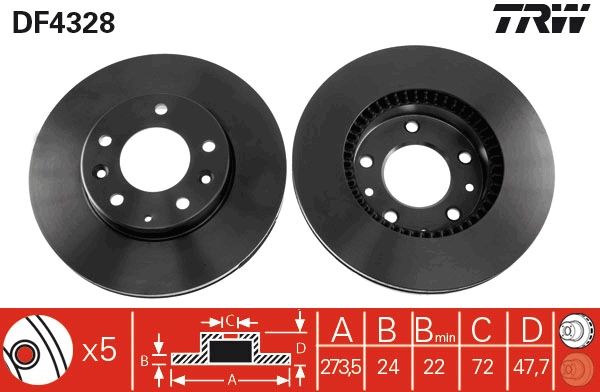

TRW DF4328 Brake Disc
EAN: 3322937400348
Dispatched on: est. 23 Jun, 2025
30.11 EUR
Inc. VAT 0%
Technical Specifications
| Brake Disc Type: | Vented |
| Brake Disc Thickness [mm]: | 24 |
| Height [mm]: | 47.7 |
| Bolt Hole Circle Ø [mm]: | 114.3 |
| Machining: | High-carbon |
| Colour: | black |
| Test Mark: | E1 90R-02 C0176/0686 |
| Outer Diameter [mm]: | 274 |
| Centering Diameter [mm]: | 72 |
| Number of Holes: | 5 |
| Thread Size: | 13,1 |
| Minimum thickness [mm]: | 22 |
| Surface: | Painted |
| SVHC: | No information available, please contact the manufacturer! |
OEN Number
| MAZDA: | GF3Y-33-25XA |
| MAZDA: | G25Y-33-25XA |
| FAW: | FC013325X |
| MAZDA: | GF3Y-33-25X |
| FAW: | FA0133030 |
Compatibility
Similar Spare Parts
| A.B.S.: | 17095 |
| ABAKUS: | 231-03-205-2 |
| ASHIKA: | 60-03-310C |
| BLUE PRINT: | ADM543107 |
| BLUE PRINT: | ADM54359 |
| BREMBO: | 09.9585.11 |
| CHAMPION: | 562446CH |
| DELPHI: | BG3724 |
| FEBI BILSTEIN: | 108454 |
| FTE: | 9072300 |
| HELLA PAGID: | 8DD 355 108-161 |
| JAPANPARTS: | DI-310C |
| JAPKO: | 60310C |
| JURID: | 562446JC |
| KAVO PARTS: | BR-4753-C |
| LPR: | M5000V |
| MAGNETI MARELLI: | 360406030601 |
| MASTER-SPORT GERMANY: | 24012401751-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012401751-SET-MSP |
| MAXGEAR: | 19-0944MAX |
| METELLI: | 23-0901C |
| MEYLE: | 35-15 521 0026 |
| NK: | 203241 |
| OPTIMAL: | BS-7754C |
| REMSA: | 6767.10 |
| STELLOX: | 6020-3241V-SX |
| TEXTAR: | 92110400 |
| VALEO: | 673436 |
| ZIMMERMANN: | 370.3072.52 |
| ABAKUS: | 231-03-205 |
| ABE: | C33074ABE |
| ATE: | 24.0124-0175.1 |
| BLUE PRINT: | ADM543108 |
| BOSCH: | 0 986 479 034 |
| BREMBO: | 09.9585.14 |
| CIFAM: | 800-901C |
| DENCKERMANN: | B130408 |
| FERODO: | DDF1278C |
| HELLA: | 8DD 355 108-161 |
| HERTH+BUSS JAKOPARTS: | J3303070 |
| JAPANPARTS: | DI310JM |
| JP GROUP: | 3863101500 |
| KAMOKA: | 1031089 |
| KRAFT AUTOMOTIVE: | 6043515 |
| MAGNETI MARELLI: | 360406030600 |
| MASTER-SPORT GERMANY: | 24012401751-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401751-SET-MS |
| MAXGEAR: | 19-0944 |
| MAXGEAR: | 19-0944SPORT |
| METZGER AUTOTEILE: | 6110523 |
| NIPPARTS: | J3303070 |
| NK: | 313241 |
| QUARO: | QD3205 |
| SKF: | VKBD 80527 V2 |
| STELLOX: | 6020-3241VK-SX |
| TRISCAN: | 8120 50136C |
| ZIMMERMANN: | 370.3072.20 |
