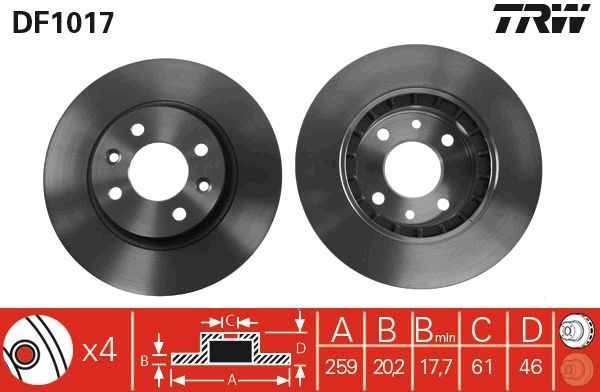

TRW DF1017 Brake Disc
EAN: 3322936101703
Dispatched on: est. 26 Jun, 2025
26.68 EUR
Inc. VAT 0%
Technical Specifications
| Surface: | Painted |
| Outer Diameter [mm]: | 259 |
| Minimum thickness [mm]: | 17.7 |
| Height [mm]: | 46 |
| Thread Size: | 13 |
| Colour: | black |
| SVHC: | No information available, please contact the manufacturer! |
| Brake Disc Type: | Vented |
| Brake Disc Thickness [mm]: | 20.2 |
| Centering Diameter [mm]: | 61 |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Test Mark: | E1 90R-02 C0176/0701 |
OEN Number
| RENAULT: | 77 00 715 081 |
| RENAULT: | 77 01 201 283 |
| RENAULT: | 77 00 753 321 |
| RENAULT: | 77 01 204 283 |
| RENAULT: | 77 01 204 284 |
| RENAULT: | 77 00 715 412 |
Compatibility
Similar Spare Parts
| A.B.S.: | 15114 |
| ASHIKA: | 60-0H-008C |
| BLUE PRINT: | ADG04356 |
| BOSCH: | 0 986 478 270 |
| CHAMPION: | 562459CH |
| DELPHI: | BG2283 |
| FEBI BILSTEIN: | 108449 |
| FERODO: | DDF159 |
| HELLA: | 8DD 355 110-931 |
| HELLA PAGID: | 8DD 355 110-931 |
| JAPANPARTS: | DI-H08C |
| JAPKO: | 60H08C |
| JURID: | 562459JC |
| KRAFT AUTOMOTIVE: | 6045020 |
| MAGNETI MARELLI: | 360406042300 |
| MASTER-SPORT GERMANY: | 24012401841-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012401841-SET-MSP |
| MAXGEAR: | 19-2502 |
| MAXGEAR: | 19-2543 |
| METELLI: | 23-0591 |
| METZGER AUTOTEILE: | 6110433 |
| MEYLE: | 37-15 521 0021 |
| NK: | 203410 |
| NK: | 203949 |
| OPTIMAL: | BS-2040 |
| OPTIMAL: | BS-8150 |
| REMSA: | 6204.10 |
| SKF: | VKBD 80860 V2 |
| SWAG: | 33 10 6582 |
| TEXTAR: | 92036400 |
| TRW: | DF4698 |
| VALEO: | 186825 |
| ZIMMERMANN: | 285.3508.20 |
| A.B.S.: | 17199 |
| ATE: | 24.0120-0126.1 |
| BLUE PRINT: | ADL144322 |
| BREMBO: | 09.3149.14 |
| CIFAM: | 800-591 |
| FEBI BILSTEIN: | 10617 |
| FERODO: | DDF1270 |
| HELLA: | 8DD 355 101-281 |
| HELLA PAGID: | 8DD 355 101-281 |
| HERTH+BUSS JAKOPARTS: | J3300519 |
| JAPANPARTS: | DIH08JM |
| JURID: | 561334JC |
| KAMOKA: | 103332 |
| LEMFÖRDER: | 18148 02 |
| MASTER-SPORT GERMANY: | 24012401841-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401841-SET-MS |
| MAXGEAR: | 19-1848SPORT |
| MAXGEAR: | 19-2502SPORT |
| MAXGEAR: | 19-2543SPORT |
| METZGER AUTOTEILE: | 6110091 |
| MEYLE: | 16-15 521 0010 |
| NIPPARTS: | J3300525 |
| NK: | 203922 |
| NK: | 313410 |
| OPTIMAL: | BS-2040C |
| OPTIMAL: | BS-8150C |
| SASIC: | 4004256J |
| STELLOX: | 6020-3922V-SX |
| SWAG: | 70 91 0617 |
| TEXTAR: | 92130800 |
| VALEO: | 186214 |
| VALEO: | 673275 |
