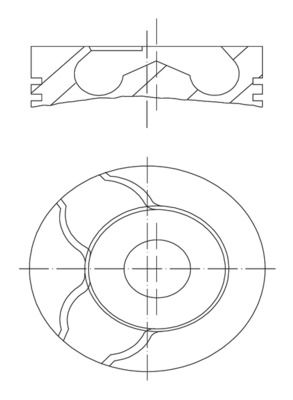

MAHLE 038 09 00 Piston
EAN: 4009026544174
Out of stock
297.11 EUR
Inc. VAT 0%
Technical Specifications
| Cylinder Bore [mm]: | 120.64 |
| Compression Height [mm]: | 92.5 |
| Bolt Head Diameter [mm]: | 52 |
| Recess Diameter [mm]: | 67.5 |
| Machined: | with cut-out for oil jet |
| Supplementary Article/Info 2: | with piston ring carrier |
| Component Number: | 1. T 3.5 IF Mo |
| Component Number: | 3. DSF4.747 Cr |
| Packaging width [cm]: | 15 |
| Net Weight [g]: | 3,682 |
| Length [mm]: | 144.5 |
| Bolt Length [mm]: | 98 |
| Recess Depth 1 [mm]: | 21.8 |
| Valve Pocket Depth 1 [mm]: | 2 |
| Surface: | Coated |
| Production Number: | 121 L 10 |
| Component Number: | 2. M3.16 IW Cr |
| Packaging length [cm]: | 15 |
| Packaging height [cm]: | 21 |
OEN Number
Compatibility
Similar Spare Parts
| DT Spare Parts: | 2.10425 |
| NÜRAL: | 87-502600-00DP |
| KOLBENSCHMIDT: | 99750600 |
