- Component Number: 71-4724
- Standard Size [STD]:

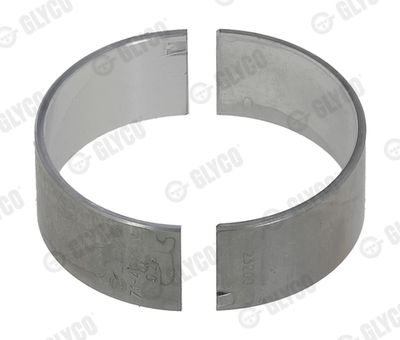

Connecting Rod Bearing - MERCEDES-BENZ C-CLASS T-Model (S204) (2007 - 2014) C 220 CDI (204.202), 125 kW
- Component Number: 72819610
- Component Number: 72820610
- Repair stage: 0,25
- Quantity Unit: Set
- Component Number: 72819600
- Component Number: 72820600
- Standard Size [STD]:
- Quantity Unit: Set
- Component Number: 72819620
- Component Number: 72820620
- Repair stage: 0,50
- Quantity Unit: Set
- Thickness [mm]: 1.809
- Width [mm]: 20.4
- Outer Diameter [mm]: 55.59
- for shaft diameter from [mm]: 51.92
- for housing diameter from [mm]: 55.59
- Quantity Unit: Pair
- Surface: Cathodic Sputtering
- for bearing clearance from [mm]: 0.02
- to bearing clearance [mm]: 0.077
- for housing diameter from [mm]: 55.6
- Quantity Unit: Pair
- Surface: Cathodic Sputtering
- for bearing clearance from [mm]: 0.02
- to bearing clearance [mm]: 0.077
- for housing diameter from [mm]: 55.6
- Quantity Unit: Pair
- Surface: Cathodic Sputtering
- for bearing clearance from [mm]: 0.02
- to bearing clearance [mm]: 0.077
- for housing diameter from [mm]: 55.6
- Component Number: 71-4724
- Oversize [mm]: 0.25
- Undersize [mm]: 0.25
