BREMBO 09.5166.1X Brake Disc
EAN: 8020584212370
Dispatched on: est. 21 Jul, 2025
38.13 EUR
Inc. VAT 0%

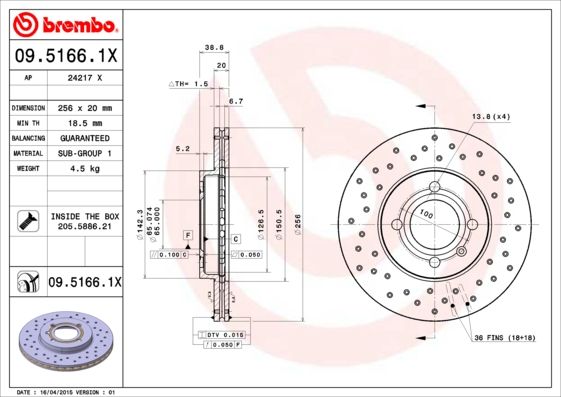

Technical Specifications
| Brake Disc Type: | perforated/vented |
| Number of Holes: | 4 |
| Height [mm]: | 39 |
| Outer Diameter [mm]: | 256 |
| Minimum thickness [mm]: | 18.5 |
| Brake Disc Thickness [mm]: | 20 |
| Supplementary Article/Info 2: | with bolts/screws |
| Centering Diameter [mm]: | 65 |
| Surface: | Coated |
| Tightening Torque [Nm]: | 110 |
OEN Number
| SEAT: | 321615301D |
| SEAT: | 6N0615301D |
| VW: | 3256152893 |
| VW: | 6N0615301D |
| VW (FAW): | 321615301D |
| VW (SVW): | 321615301D |
| SEAT: | 357615301D |
| VW: | 321615301D |
| VW: | 357615301D |
| VW: | 6NO615301D |
| VW (FAW): | 3256152893 |
| VW (SVW): | 3256152893 |
Similar Spare Parts
| A.B.S.: | 15810 |
| ABAKUS: | 231-03-041-2 |
| ALTE AUTOMOTIVE: | 128042FCAL |
| ASHIKA: | 60-00-0935C |
| ATE: | 24.0320-0128.1 |
| BOSCH: | 0 986 478 308 |
| DENCKERMANN: | B130026P |
| FTE: | 9072034 |
| HELLA PAGID: | 8DD 355 101-321 |
| JAPANPARTS: | DI-0935C |
| JAPKO: | 600935 |
| JURID: | 561448JC |
| MAGNETI MARELLI: | 361302040250 |
| MASTER-SPORT GERMANY: | 24012001281-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012001281-SET-MSP |
| MASTER-SPORT GERMANY: | 24012001281PR-PCS-MSP |
| MAXGEAR: | 19-0754 SPORT |
| METZGER AUTOTEILE: | 6110026 |
| MEYLE: | 183 521 1006/PD |
| NK: | 319934 |
| REMSA: | 6175.10 |
| SWAG: | 32 90 6512 |
| TEXTAR: | 92036803 |
| TRW: | DF1533 |
| VALEO: | 673029 |
| ZIMMERMANN: | 600.1597.52 |
| ABAKUS: | 231-03-041 |
| AISIN: | X6F946S |
| ASHIKA: | 60-00-0935 |
| ATE: | 24.0120-0128.1 |
| BLUE PRINT: | ADV184356 |
| DENCKERMANN: | B130026 |
| FEBI BILSTEIN: | 06512 |
| HELLA: | 8DD 355 101-321 |
| JAPANPARTS: | DI-0935 |
| JAPANPARTS: | DI0935JM |
| JAPKO: | 600935C |
| MAGNETI MARELLI: | 360406048102 |
| MASTER-SPORT GERMANY: | 24012001281-PCS-MS |
| MASTER-SPORT GERMANY: | 24012001281-SET-MS |
| MASTER-SPORT GERMANY: | 24012001281PR-PCS-MS |
| MAXGEAR: | 19-0754 |
| MAXGEAR: | 19-0754MAX |
| MEYLE: | 115 521 1006 |
| NK: | 209934 |
| QUARO: | QD1645 |
| STELLOX: | 6020-9934V-SX |
| TEXTAR: | 92036800 |
| TOPRAN: | 103 408 |
| VALEO: | 186247 |
| ZIMMERMANN: | 600.1597.20 |
| ZIMMERMANN: | 600.1597.53 |
