BOSCH 0 986 049 700 Alternator
EAN: 4047024645943
Dispatched on: est. 16 Jun, 2025
142.49 EUR
Inc. VAT 0%

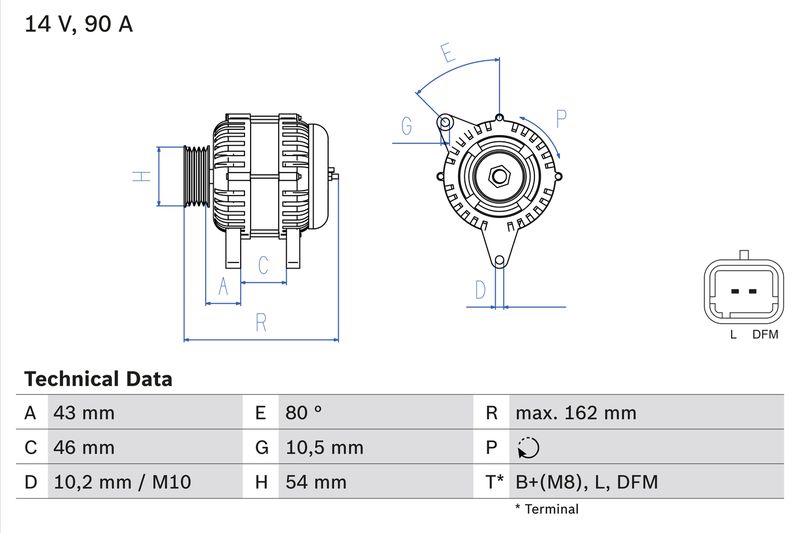

Technical Specifications
| Exchange Part: | |
| Alternator Charging Current [A]: | 90 |
| Alternator Type: | excl. vacuum pump |
| Rotation Direction: | Clockwise rotation |
| Number of grooves: | 6 |
| Length [mm]: | 162 |
| Voltage [V]: | 14 |
| Fastening Type: | Double Pivot Lever |
| Distance from belt pulley to alternator [mm]: | 42.5 |
| Pulleys: | with multi-belt pulley |
| Belt Pulley Ø [mm]: | 54 |
| Recommended additional repairs: | V-Belt/V-Ribbed Belt |
OEN Number
| CITROËN: | 5705 CQ |
| CITROËN: | 5705 5C |
| CITROËN: | 5705 7E |
| FIAT: | K9638275480 |
| LANCIA: | K9638275480 |
| PEUGEOT: | 5705 CQ |
| PEUGEOT: | 5705 5C |
| PEUGEOT: | 5705 7E |
| PEUGEOT: | 96 382 757 80 |
| PEUGEOT: | 9638 275 480 |
| PEUGEOT: | 9656 003 780 |
| CITROËN: | 5705 4K |
| CITROËN: | 5705 5V |
| CITROËN: | 5705 7F |
| FIAT: | 9638275480 |
| LANCIA: | 9638275480 |
| PEUGEOT: | 5705 4K |
| PEUGEOT: | 5705 5V |
| PEUGEOT: | 5705 7F |
| PEUGEOT: | 9636 204 680 |
| PEUGEOT: | 9642 880 180 |
| TOYOTA: | 27060 YV010 |
Similar Spare Parts
| AS-PL: | A3256 |
| AS-PL: | A3768S |
| BLUE PRINT: | ADT311173C |
| BOSCH: | 1 986 A01 818 |
| BV PSH: | 225.520.080.342 |
| BV PSH: | 225.520.080.505 |
| DENSO: | DAN1336 |
| ELSTOCK: | 28-3949 |
| ERA: | 210347A |
| ERA: | 210508A |
| FEBI BILSTEIN: | 193481 |
| JAPANPARTS: | AL201150 |
| JAPKO: | 2201150 |
| MAGNETI MARELLI: | 063321734010 |
| MAGNETI MARELLI: | 944390901470 |
| NK: | 4819003 |
| VALEO: | 200157 |
| VALEO: | 439692 |
| VALEO: | 440280 |
| AS-PL: | A3417PR |
| ASHIKA: | 002-201150 |
| BOM-Prestolite: | A1902E |
| BV PSH: | 225.520.080.000 |
| BV PSH: | 225.520.080.500 |
| BV PSH: | 225.520.080.968 |
| DRI: | 229120902 |
| ERA: | 210347 |
| ERA: | 210508 |
| FEBI BILSTEIN: | 101505 |
| HELLA: | 8EL 012 427-061 |
| JAPANPARTS: | AL201150JM |
| LUCAS: | LRB00494 |
| MAGNETI MARELLI: | 063731589010 |
| NIPPARTS: | N5112127 |
| STELLOX: | 06-10708-SX |
| VALEO: | 437357 |
| VALEO: | 439695 |
| VEMO: | V22-13-50001 |
