ATE 24.0322-0204.1 Brake Disc
EAN: 4006633094207
Dispatched on: est. 19 Jun, 2025
35.96 EUR
Inc. VAT 0%

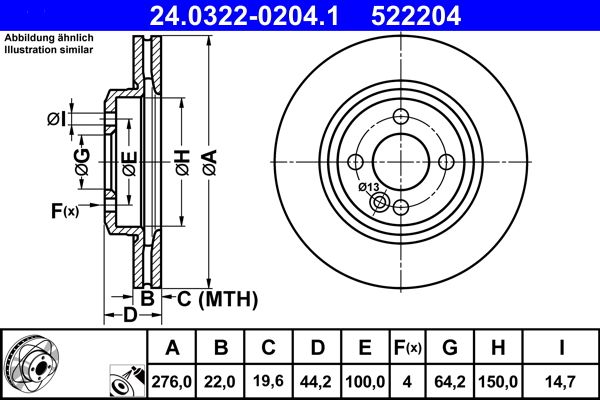

Technical Specifications
| Outer Diameter [mm]: | 276 |
| Minimum thickness [mm]: | 19.6 |
| Number of Holes: | 4 |
| Surface: | Coated |
| Centering Diameter [mm]: | 64.2 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Test Mark: | E1 90R-02C0858/1213 |
| Brake Disc Thickness [mm]: | 22 |
| Brake Disc Type: | Vented |
| Machining: | High-carbon |
| Height [mm]: | 44.2 |
| Inner Diameter [mm]: | 150 |
| Bore Diameter [mm]: | 14.7 |
| MAPP code available: |
OEN Number
| MINI: | 34 11 1 502 891 |
Compatibility
Similar Spare Parts
| A.B.S.: | 17349 |
| ALTE AUTOMOTIVE: | 128102FCAL |
| BLUE PRINT: | ADG04374 |
| BOSCH: | 0 986 479 B39 |
| BREMBO: | 09.8655.11 |
| BREMBO: | 09.8655.75 |
| DELPHI: | BG3661 |
| DENCKERMANN: | B130366 |
| FERODO: | DDF1127 |
| FTE: | 9072281 |
| HELLA: | 8DD 355 131-981 |
| HELLA PAGID: | 8DD 355 131-981 |
| JAPANPARTS: | DI0149JM |
| JURID: | 562139JC |
| MAGNETI MARELLI: | 360406017400 |
| MAGNETI MARELLI: | 360406017405 |
| MASTER-SPORT GERMANY: | 24012202041-PCS-MS |
| MASTER-SPORT GERMANY: | 24012202041-SET-MS |
| MASTER-SPORT GERMANY: | 24012202041SE-SET-MS |
| MAXGEAR: | 19-2564 |
| MAXGEAR: | 19-2564SPORT |
| MEYLE: | 315 521 0024 |
| NK: | 204016 |
| OPTIMAL: | BS-7450 |
| QUARO: | QD5276 |
| SWAG: | 11 92 3115 |
| TEXTAR: | 92262400 |
| TRW: | DF4197 |
| VALEO: | 186762 |
| ZIMMERMANN: | 150.3400.20 |
| AIC: | 52700 |
| ASHIKA: | 60-00-0149C |
| BOSCH: | 0 986 478 606 |
| BREMBO: | 09.8655.10 |
| BREMBO: | 09.8655.1X |
| CHAMPION: | 562139CH |
| DELPHI: | BG3661C |
| FEBI BILSTEIN: | 23115 |
| FERODO: | DDF1127C |
| HELLA: | 8DD 355 120-611 |
| HELLA PAGID: | 8DD 355 120-611 |
| JAPANPARTS: | DI-0149C |
| JAPKO: | 600149C |
| KAMOKA: | 103073 |
| MAGNETI MARELLI: | 360406017402 |
| MAGNETI MARELLI: | 361302040182 |
| MASTER-SPORT GERMANY: | 24012202041-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012202041-SET-MSP |
| MASTER-SPORT GERMANY: | 24012202041SE-SET-MSP |
| MAXGEAR: | 19-2564MAX |
| METZGER AUTOTEILE: | 6110207 |
| MEYLE: | 315 521 0024/PD |
| NK: | 314016 |
| OPTIMAL: | BS-7450C |
| SKF: | VKBD 80130 V2 |
| TEXTAR: | 92107503 |
| TEXTAR: | 92262403 |
| VAICO: | V20-40031 |
| VALEO: | 672802 |
| ZIMMERMANN: | 150.3400.52 |
