ATE 24.0313-0161.1 Brake Disc
EAN: 4006633289382
Dispatched on: est. 30 Jun, 2025
19.68 EUR
Inc. VAT 0%

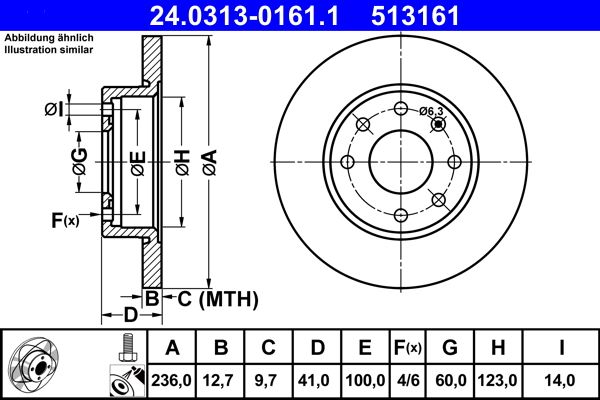

Technical Specifications
| Outer Diameter [mm]: | 236 |
| Minimum thickness [mm]: | 9.7 |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 60 |
| Bore Diameter [mm]: | 14 |
| Test Mark: | E1 90R-02C0859/1293 |
| Brake Disc Thickness [mm]: | 12.7 |
| Brake Disc Type: | solid |
| Surface: | Coated |
| Height [mm]: | 41 |
| Inner Diameter [mm]: | 123 |
| Supplementary Article/Info 2: | with bolts/screws |
| MAPP code available: |
OEN Number
Compatibility
Similar Spare Parts
| A.B.S.: | 15748 |
| ASHIKA: | 60-00-0424C |
| BOSCH: | 0 986 478 079 |
| BOSCH: | 0 986 479 B20 |
| BREMBO: | 08.4475.10 |
| BREMBO: | 08.8638.10 |
| BREMBO: | 08.8638.1X |
| CHAMPION: | 562195CH |
| CIFAM: | 800-568C |
| DENCKERMANN: | B130009 |
| FERODO: | DDF001 |
| FERODO: | DDF1129C |
| FERODO: | DDF116C |
| HELLA PAGID: | 8DD 355 100-431 |
| JAPANPARTS: | DI0424JM |
| JURID: | 561158JC |
| MAGNETI MARELLI: | 353613405140 |
| MAGNETI MARELLI: | 360406037205 |
| MAGNETI MARELLI: | 360406039202 |
| MAGNETI MARELLI: | 361302040177 |
| MASTER-SPORT GERMANY: | 24011301611-SET-MSP |
| MAXGEAR: | 19-0744MAX |
| METELLI: | 23-0080 |
| METZGER AUTOTEILE: | 6110014 |
| MEYLE: | 615 521 6003 |
| NK: | 203641 |
| NK: | 313606 |
| OPTIMAL: | BS-0590C |
| SKF: | VKBD 80590 S2 |
| SWAG: | 40 90 8504 |
| TOMEX Brakes: | TX 70-28 |
| TOPRAN: | 206 122 |
| VAICO: | V40-40006 |
| VALEO: | 186757 |
| ZIMMERMANN: | 430.1452.20 |
| AIC: | 51717 |
| BLUE PRINT: | ADZ94329 |
| BOSCH: | 0 986 478 081 |
| BOSCH: | 0 986 479 S98 |
| BREMBO: | 08.4475.75 |
| BREMBO: | 08.8638.11 |
| CHAMPION: | 561158CH |
| CIFAM: | 800-080 |
| DELPHI: | BG2148 |
| FEBI BILSTEIN: | 08504 |
| FERODO: | DDF1129 |
| FERODO: | DDF116 |
| HELLA: | 8DD 355 100-431 |
| JAPANPARTS: | DI-0424C |
| JAPKO: | 600424C |
| KRAFT AUTOMOTIVE: | 6041500 |
| MAGNETI MARELLI: | 360406037200 |
| MAGNETI MARELLI: | 360406039200 |
| MAGNETI MARELLI: | 361302040129 |
| MASTER-SPORT GERMANY: | 24011301611-SET-MS |
| MAXGEAR: | 19-0744 |
| MAXGEAR: | 19-0744SPORT |
| METELLI: | 23-0568C |
| METZGER AUTOTEILE: | 6110450 |
| NK: | 203606 |
| NK: | 209902 |
| NK: | 313641 |
| QUARO: | QD7483 |
| STELLOX: | 6020-3606-SX |
| TEXTAR: | 92020903 |
| TOPRAN: | 200 935 |
| TRW: | DF1608 |
| VALEO: | 186187 |
| VALEO: | 673033 |
| ZIMMERMANN: | 430.1452.52 |
