ATE 24.0225-4017.1 Brake Drum
EAN: 4006633163132
Out of stock
66.59 EUR
Inc. VAT 0%

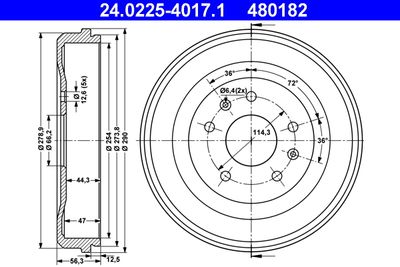

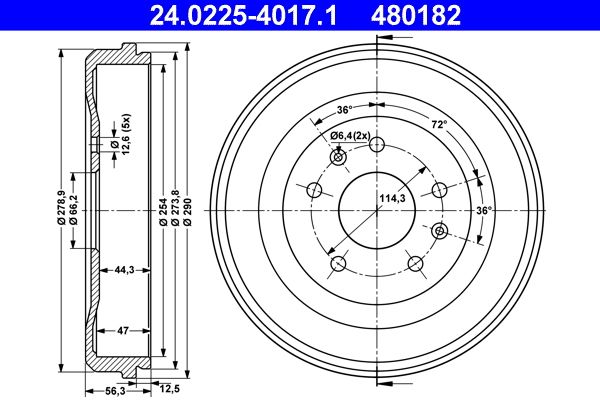

Technical Specifications
| Inner brake drum diameter [mm]: | 254 |
| Inner brake drum height [mm]: | 47 |
| Bolt Hole Circle Ø [mm]: | 114.3 |
| Total brake drum height [mm]: | 56.3 |
| Support plate diameter [mm]: | 66.2 |
| max. brake drum reboring dimension [mm]: | 255.5 |
| Number of Holes: | 5 |
| Bore Diameter [mm]: | 12.6 |
| Outer brake drum diameter [mm]: | 290 |
| MAPP code available: |
Compatibility
Similar Spare Parts
| A.B.S.: | 2787-S |
| ABE: | C6I001ABE |
| BLUE PRINT: | ADJ134701 |
| DELPHI: | BF460 |
| FERODO: | FDR329267 |
| HELLA: | 8DT 355 300-901 |
| JAPANPARTS: | TA-L00C |
| JAPKO: | 56L00C |
| MAXGEAR: | 19-3202 |
| OPTIMAL: | BT-2110 |
| SWAG: | 33 10 2741 |
| TRW: | DB4279 |
| VALEO: | 237074 |
| ABE: | C63007ABE |
| ASHIKA: | 56-0L-L00C |
| BREMBO: | 14.A678.10 |
| FEBI BILSTEIN: | 171125 |
| FTE: | BT588 |
| HELLA PAGID: | 8DT 355 300-901 |
| JAPANPARTS: | TAL00JM |
| LPR: | 7D0597 |
| NK: | 254002 |
| STELLOX: | 6026-4719-SX |
| TEXTAR: | 94030900 |
| TRW: | DB4297 |
