ATE 24.0220-3037.1 Brake Drum
EAN: 4006633378574
Dispatched on: est. 20 Jun, 2025
38.84 EUR
Inc. VAT 0%

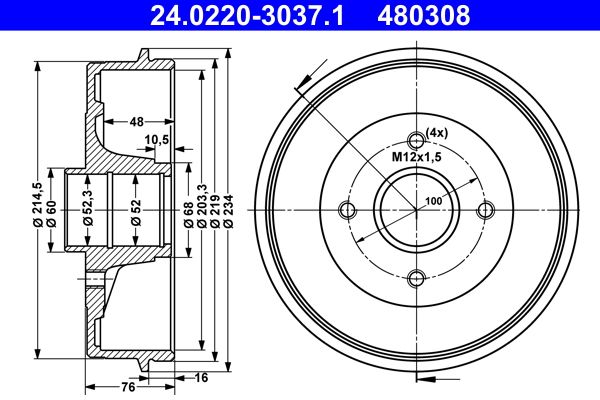

Technical Specifications
| Supplementary Article/Info 2: | without wheel bearing |
| Inner brake drum diameter [mm]: | 203 |
| Inner Brake Drum Height [mm]: | 48 |
| Number of Holes: | 4 |
| Thread Size: | M12x1,5 |
| Outer brake drum diameter [mm]: | 234 |
| MAPP code available: |
| Supplementary Article/Info 2: | without ABS sensor ring |
| Max.skimmed drum measure [mm]: | 204.5 |
| Support plate diameter [mm]: | 52 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Total Br. Drum Height [mm]: | 76 |
| Test Mark: | E1 90R-02D0955/0095 |
OEN Number
| RENAULT: | 77 00 839 322 |
| RENAULT: | 77 00 428 821 |
| RENAULT: | 77 00 818 346 |
| RENAULT: | 43 20 064 68R |
| RENAULT: | 43 20 042 55R |
| RENAULT: | 43 20 247 63R |
| RENAULT: | 43 20 295 21R |
| DACIA: | 60 01 547 703 |
| DACIA: | 43 20 232 59R |
| RENAULT: | 77 00 827 866 |
| RENAULT: | 82 00 243 735 |
| RENAULT: | 82 00 672 836 |
| RENAULT: | 82 00 290 352 |
| RENAULT: | 60 01 547 703 |
| RENAULT: | 43 20 232 59R |
| DACIA: | 82 00 243 735 |
| DACIA: | 77 00 839 322 |
Similar Spare Parts
| A.B.S.: | 2854-S |
| ASHIKA: | 56-00-0710 |
| ATE: | 24.0220-3036.1 |
| BOSCH: | 0 986 477 205 |
| BOSCH: | 0 986 477 210 |
| BOSCH: | 0 986 477 214 |
| BOSCH: | 0 986 477 322 |
| BREMBO: | 14.7257.20 |
| DELPHI: | BFR538 |
| FTE: | BT440 |
| HELLA PAGID: | 8DT 355 301-071 |
| JAPANPARTS: | TA-0710 |
| JAPKO: | 56008C |
| LPR: | 7D0671 |
| MAXGEAR: | 19-4760 |
| MEYLE: | 16-15 523 0031 |
| OPTIMAL: | BT-1620 |
| TEXTAR: | 94033800 |
| TRISCAN: | 8120 25215C |
| TRW: | DB4214B |
| TRW: | DB4400B |
| ZIMMERMANN: | 470.1856.00 |
| ASHIKA: | 56-00-008C |
| ATE: | 24.0220-3021.1 |
| BLUE PRINT: | ADBP470005 |
| BOSCH: | 0 986 477 206 |
| BOSCH: | 0 986 477 211 |
| BOSCH: | 0 986 477 289 |
| BOSCH: | 0 986 477 323 |
| DELPHI: | BF538 |
| FEBI BILSTEIN: | 176963 |
| HELLA: | 8DT 355 301-071 |
| JAPANPARTS: | TA-008C |
| JAPANPARTS: | TA008JM |
| JAPKO: | 560710 |
| MAXGEAR: | 19-3702 |
| MEYLE: | 16-15 523 0030 |
| NK: | 253929 |
| SWAG: | 33 10 3820 |
| TRISCAN: | 8120 25215 |
| TRW: | DB4214 |
| TRW: | DB4400 |
| VAICO: | V46-60000 |
