ATE 24.0220-3029.1 Brake Drum
EAN: 4006633160858
Dispatched on: est. 02 Jul, 2025
35.44 EUR
Inc. VAT 0%

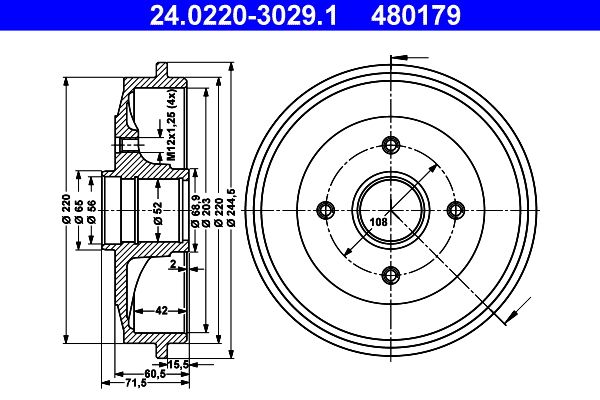

Technical Specifications
| Supplementary Article/Info 2: | without wheel bearing |
| Inner brake drum diameter [mm]: | 203 |
| Inner Brake Drum Height [mm]: | 42 |
| Bolt Hole Circle Ø [mm]: | 108 |
| Total Br. Drum Height [mm]: | 71.5 |
| Support plate diameter [mm]: | 52 |
| MAPP code available: |
| Supplementary Article/Info 2: | without ABS sensor ring |
| Max.skimmed drum measure [mm]: | 204.5 |
| Number of Holes: | 4 |
| Thread Size: | M12x1,25 |
| Outer brake drum diameter [mm]: | 244.5 |
| Test Mark: | E1 90R-02D0955/0094 |
Similar Spare Parts
| A.B.S.: | 7176-S |
| ABAKUS: | 231-06-004-2 |
| ASHIKA: | 56-00-0611 |
| BLUE PRINT: | ADBP470012 |
| BOSCH: | 0 986 477 303 |
| BREMBO: | 14.E308.50 |
| DELPHI: | BF484 |
| FEBI BILSTEIN: | 171094 |
| FTE: | 9190010 |
| FTE: | BT1025LS |
| HELLA: | 8DT 355 302-741 |
| HELLA PAGID: | 8DT 355 302-741 |
| JAPANPARTS: | TA-0611C |
| JAPKO: | 560611 |
| KAMOKA: | 104049 |
| LPR: | 7D0637 |
| MAXGEAR: | 19-3681 |
| NK: | 251907 |
| TEXTAR: | 94026600 |
| TOPRAN: | 721 193 |
| TRISCAN: | 8120 38202C |
| TRW: | DB4310B |
| VAICO: | V42-60001 |
| ZIMMERMANN: | 440.1834.00 |
| ABAKUS: | 231-06-004 |
| ABE: | C6C006ABE |
| ASHIKA: | 56-00-0611C |
| BOSCH: | 0 986 477 201 |
| BREMBO: | 14.E308.10 |
| BREMBO: | 14.E308.60 |
| DENCKERMANN: | B140014 |
| FTE: | 9190009 |
| FTE: | BT1025 |
| HELLA: | 8DT 355 300-591 |
| HELLA PAGID: | 8DT 355 300-591 |
| JAPANPARTS: | TA-0611 |
| JAPANPARTS: | TA0611JM |
| JAPKO: | 560611C |
| KRAFT AUTOMOTIVE: | 6066230 |
| MAXGEAR: | 19-1353 |
| METZGER AUTOTEILE: | BT 1055 |
| SWAG: | 33 10 0705 |
| TEXTAR: | 94041200 |
| TRISCAN: | 8120 38201C |
| TRW: | DB4310 |
| TRW: | DB4310MR |
| VALEO: | 237016 |
