ATE 24.0220-0038.1 Brake Drum
EAN: 4006633106962
Dispatched on: est. 03 Jul, 2025
39.24 EUR
Inc. VAT 0%

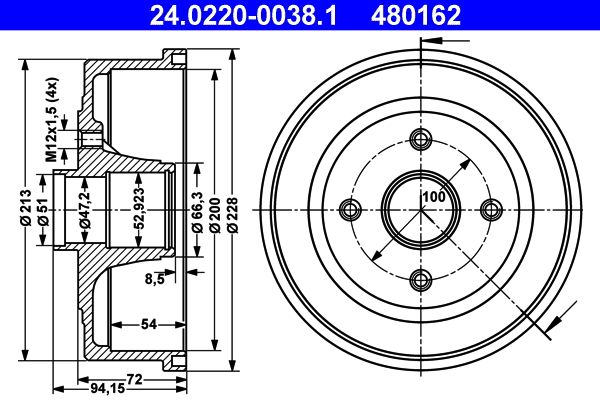

Technical Specifications
| Supplementary Article/Info 2: | without wheel bearing |
| Inner brake drum diameter [mm]: | 200 |
| Inner Brake Drum Height [mm]: | 54 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Total Br. Drum Height [mm]: | 94.2 |
| Support plate diameter [mm]: | 53 |
| Test Mark: | E1 90R-02D0955/0094 |
| Supplementary Article/Info 2: | without ABS sensor ring |
| Max.skimmed drum measure [mm]: | 201 |
| Number of Holes: | 4 |
| Thread Size: | M12x1,5 |
| Outer brake drum diameter [mm]: | 228 |
| Inner Diameter 2 [mm]: | 47.2 |
| MAPP code available: |
Compatibility
Similar Spare Parts
| A.B.S.: | 2739-S |
| AIC: | 54778 |
| ASHIKA: | 56-00-0412C |
| BOSCH: | 0 986 477 135 |
| BREMBO: | 14.E311.50 |
| FEBI BILSTEIN: | 171003 |
| FTE: | 9190059 |
| HELLA: | 8DT 355 300-411 |
| HELLA PAGID: | 8DT 355 300-411 |
| JAPANPARTS: | TA-0412 |
| JAPANPARTS: | TA0412JM |
| JAPKO: | 560412C |
| KRAFT AUTOMOTIVE: | 6061522 |
| MAXGEAR: | 19-1357 |
| METZGER AUTOTEILE: | BT 1004 |
| NK: | 253616 |
| OPTIMAL: | BT-2260 |
| SWAG: | 33 10 0663 |
| TEXTAR: | 94041100 |
| TRISCAN: | 8120 24209 |
| TRW: | DB4302 |
| VAICO: | V40-60005 |
| ZIMMERMANN: | 430.1786.20 |
| ABE: | C6X009ABE |
| ASHIKA: | 56-00-0412 |
| BLUE PRINT: | ADBP470001 |
| BREMBO: | 14.E311.10 |
| DELPHI: | BF472 |
| FERODO: | FDR329259 |
| FTE: | BT617 |
| HELLA: | 8DT 355 302-731 |
| HELLA PAGID: | 8DT 355 302-731 |
| JAPANPARTS: | TA-0412C |
| JAPKO: | 560412 |
| KAMOKA: | 104033 |
| LPR: | 7D0601 |
| MAXGEAR: | 19-3701 |
| NK: | 251203 |
| NK: | 253617 |
| STELLOX: | 6025-9924-SX |
| TEXTAR: | 94024200 |
| TOPRAN: | 206 492 |
| TRISCAN: | 8120 24209C |
| TRW: | DB4302B |
| VALEO: | 237098 |
