ATE 24.0133-0100.1 Brake Disc
EAN: 4006633383240
Dispatched on: est. 5 May, 2025
74.86 EUR
Inc. VAT 0%

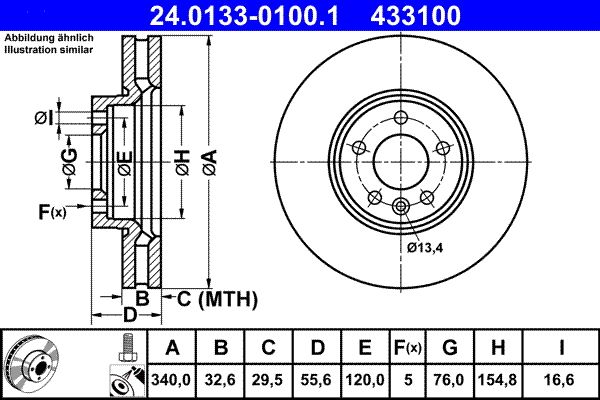

Technical Specifications
| Outer Diameter [mm]: | 340 |
| Minimum thickness [mm]: | 29.5 |
| Machining: | High-carbon |
| Number of Holes: | 5 |
| Height [mm]: | 55.6 |
| Inner Diameter [mm]: | 154.8 |
| Supplementary Article/Info 2: | with bolts/screws |
| Test Mark: | E1 90R-02C0115/0414 |
| Brake Disc Thickness [mm]: | 32.6 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Bolt Hole Circle Ø [mm]: | 120 |
| Centering Diameter [mm]: | 76 |
| Bore Diameter [mm]: | 16.6 |
| MAPP code available: |
OEN Number
| VAG: | 7E0 615 301 C |
| VAG: | 7E0 615 301 F |
Compatibility
Similar Spare Parts
| A.B.S.: | 18195 |
| ABAKUS: | 231-03-160-2 |
| BLUE PRINT: | ADV184366 |
| BREMBO: | 09.B498.10 |
| CIFAM: | 800-1470C |
| DENCKERMANN: | B130667 |
| FERODO: | DDF2182C-1 |
| FTE: | 9081139 |
| FTE: | BS7707B |
| HELLA PAGID: | 8DD 355 129-251 |
| JAPANPARTS: | DI0954JM |
| KAMOKA: | 103319 |
| MAGNETI MARELLI: | 360406125600 |
| MASTER-SPORT GERMANY: | 24013301001-PCS-MS |
| MASTER-SPORT GERMANY: | 24013301001-SET-MS |
| MAXGEAR: | 19-3221 |
| METELLI: | 23-1470C |
| MEYLE: | 183 521 0024/PD |
| NK: | 3147145 |
| QUARO: | QD0420HC |
| SKF: | VKBD 81084 V1 |
| STELLOX: | 6020-1747K-SX |
| TEXTAR: | 92230305 |
| TRISCAN: | 8120 291038C |
| TRW: | DF6499S |
| VALEO: | 672768 |
| ZIMMERMANN: | 600.3249.52 |
| ZIMMERMANN: | 600.3249.55 |
| ABAKUS: | 231-03-160 |
| ASHIKA: | 60-00-0954C |
| BOSCH: | 0 986 479 546 |
| BREMBO: | 09.B498.11 |
| DELPHI: | BG9106 |
| FEBI BILSTEIN: | 44015 |
| FTE: | 9071154 |
| FTE: | BS7707 |
| HELLA: | 8DD 355 129-251 |
| JAPANPARTS: | DI-0954C |
| JAPKO: | 600954C |
| LPR: | V2013V |
| MAGNETI MARELLI: | 361302040768 |
| MASTER-SPORT GERMANY: | 24013301001-PCS-MSP |
| MASTER-SPORT GERMANY: | 24013301001-SET-MSP |
| MAXGEAR: | 19-3221SPORT |
| METZGER AUTOTEILE: | 6110621 |
| NK: | 2047145 |
| OPTIMAL: | BS-8716HC |
| SASIC: | 6106284 |
| STELLOX: | 6020-1747-SX |
| SWAG: | 30 94 4015 |
| TOPRAN: | 114 025 |
| TRUCKTEC AUTOMOTIVE: | 07.35.268 |
| VAICO: | V10-40092 |
| ZIMMERMANN: | 600.3249.20 |
| ZIMMERMANN: | 600.3249.54 |
