ATE 24.0132-0186.1 Brake Disc
EAN: 4006633460705
Dispatched on: est. 5 May, 2025
54.93 EUR
Inc. VAT 0%

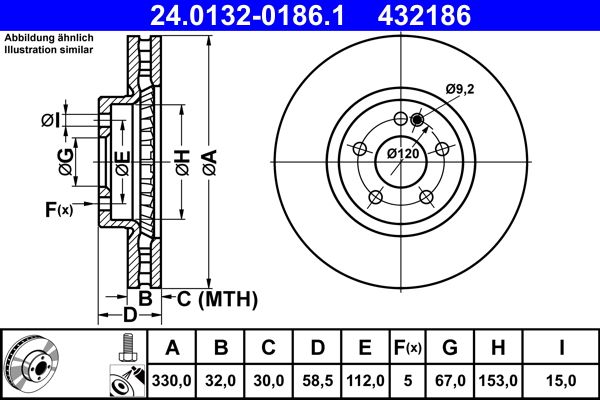

Technical Specifications
| Outer Diameter [mm]: | 330 |
| Minimum thickness [mm]: | 30 |
| Machining: | Alloyed/High-carbon |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 112 |
| Centering Diameter [mm]: | 67 |
| Supplementary Article/Info 2: | with bolts/screws |
| MAPP code available: |
| Brake Disc Thickness [mm]: | 32 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Inner Diameter [mm]: | 153 |
| Height [mm]: | 58.5 |
| Bore Diameter [mm]: | 15 |
| Test Mark: | E1 90R-02C0115/1107 |
OEN Number
| MERCEDES-BENZ: | 447 421 00 12 |
| MERCEDES-BENZ: | A 447 421 00 12 |
Compatibility
Similar Spare Parts
| A.B.S.: | 18468 |
| ABAKUS: | 231-03-247-2 |
| ABE: | C3M111ABE-P |
| BLUE PRINT: | ADU174367 |
| BREMBO: | 09.C064.11 |
| DELPHI: | BG9174C |
| FEBI BILSTEIN: | 104855 |
| FTE: | 9071076 |
| HELLA: | 8DD 355 123-501 |
| JAPANPARTS: | DI-0567C |
| JAPKO: | 600567C |
| JURID: | 569261J |
| MAGNETI MARELLI: | 361302040688 |
| MASTER-SPORT GERMANY: | 24112527791-PCS-MSP |
| MAXGEAR: | 19-3359SPORT |
| METZGER AUTOTEILE: | 6110971 |
| OPTIMAL: | BS-9398HC |
| QUARO: | QD9122HC |
| SWAG: | 10 10 4855 |
| TEXTAR: | 92279405 |
| TOPRAN: | 409 328 |
| TRW: | DF6744S |
| VAICO: | V30-40074 |
| ZIMMERMANN: | 400.5509.20 |
| ABAKUS: | 231-03-247 |
| ABE: | C3M111ABE |
| ASHIKA: | 60-00-0567C |
| BOSCH: | 0 986 479 D13 |
| CIFAM: | 800-1796C |
| DENCKERMANN: | B130813 |
| FERODO: | FCR379A |
| FTE: | BS7835 |
| HELLA PAGID: | 8DD 355 123-501 |
| JAPANPARTS: | DI0567JM |
| JP GROUP: | 1363109500 |
| KAMOKA: | 103018 |
| MASTER-SPORT GERMANY: | 24112527791-PCS-MS |
| MAXGEAR: | 19-3359 |
| METELLI: | 23-1796C |
| MEYLE: | 015 521 0041 |
| QUARO: | QD9122 |
| SKF: | VKBD 80082 V1 |
| TEXTAR: | 92279403 |
| TOMEX Brakes: | TX 72-75 |
| TRISCAN: | 8120 23121C |
| VAICO: | V30-40022 |
| VALEO: | 673186 |
| ZIMMERMANN: | 400.5509.52 |
