ATE 24.0130-0242.1 Brake Disc
EAN: 4006633434812
Dispatched on: est. 28 Jul, 2025
67.49 EUR
Inc. VAT 0%

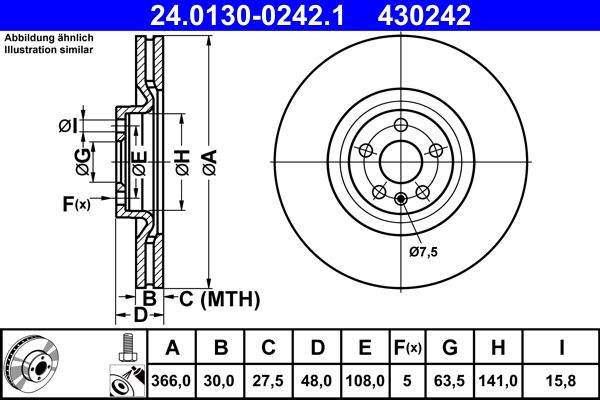

Technical Specifications
| Outer Diameter [mm]: | 366 |
| Minimum thickness [mm]: | 27.5 |
| Machining: | High-carbon |
| Number of Holes: | 5 |
| Height [mm]: | 48 |
| Inner Diameter [mm]: | 141 |
| Supplementary Article/Info 2: | with bolts/screws |
| Test Mark: | E1 90R-02C0115/0861 |
| Brake Disc Thickness [mm]: | 30 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Bolt Hole Circle Ø [mm]: | 108 |
| Centering Diameter [mm]: | 63.5 |
| Bore Diameter [mm]: | 15.8 |
| MAPP code available: |
OEN Number
| VOLVO: | 31400569 |
Compatibility
Similar Spare Parts
| A.B.S.: | 18591 |
| BOSCH: | 0 986 479 D95 |
| DELPHI: | BG9233C |
| FERODO: | DDF2853C |
| HELLA: | 8DD 355 132-411 |
| JP GROUP: | 4963101800 |
| KAMOKA: | 103628 |
| METZGER AUTOTEILE: | 6110958 |
| NK: | 314871 |
| QUARO: | QD1337 |
| REMSA: | 62113.10 |
| TEXTAR: | 92308905 |
| VALEO: | 672697 |
| ZIMMERMANN: | 610.3731.52 |
| BLUE PRINT: | ADBP430033 |
| BREMBO: | 09.C937.11 |
| FEBI BILSTEIN: | 171481 |
| FTE: | 9081355 |
| HELLA PAGID: | 8DD 355 132-411 |
| JURID: | 563477JC |
| LPR: | V1024V |
| MEYLE: | 583 521 0043/PD |
| OPTIMAL: | BS-9616HC |
| QUARO: | QD1344 |
| SWAG: | 33 10 5443 |
| TRISCAN: | 8120 27154C |
| ZIMMERMANN: | 610.3731.20 |
