ATE 24.0128-0292.1 Brake Disc
EAN: 4006633427647
Dispatched on: est. 12 May, 2025
59.66 EUR
Inc. VAT 0%

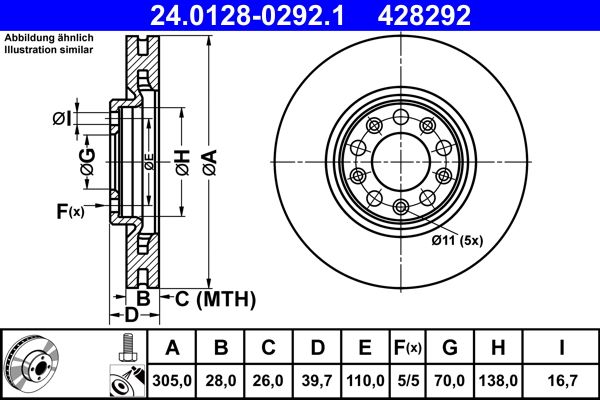

Technical Specifications
| Outer Diameter [mm]: | 305 |
| Minimum thickness [mm]: | 26 |
| Surface: | Coated |
| No. of holes 2: | 5 |
| Supplementary Article/Info 2: | with bolts/screws |
| Bolt Hole Circle Ø [mm]: | 110 |
| Centering Diameter [mm]: | 70 |
| Bore Diameter 1 [mm]: | 16.7 |
| Brake Disc Thickness [mm]: | 28 |
| Brake Disc Type: | Vented |
| Number of Holes: | 5 |
| Bore Diameter 2 [mm]: | 11 |
| MAPP code available: | |
| Height [mm]: | 39.7 |
| Inner Diameter [mm]: | 138 |
| Test Mark: | E1 90R-02C0115/1048 |
OEN Number
| FIAT: | 51937304 |
| JEEP: | K68249840AB |
| JEEP: | K68254087AB |
| JEEP: | 51963548 |
| JEEP: | K68254087AA |
Compatibility
Similar Spare Parts
| A.B.S.: | 17856 |
| BLUE PRINT: | ADL144311 |
| BOSCH: | 0 986 479 291 |
| BREMBO: | 09.D209.11 |
| CHAMPION: | 562299CH |
| DELPHI: | BG4763C |
| FEBI BILSTEIN: | 43893 |
| FERODO: | DDF1451C |
| FTE: | 9082625 |
| HELLA PAGID: | 8DD 355 126-731 |
| JAPANPARTS: | DI0207JM |
| JURID: | 563625JC |
| MASTER-SPORT GERMANY: | 24012801921-PCS-MS |
| MASTER-SPORT GERMANY: | 24012801921-SET-MS |
| MASTER-SPORT GERMANY: | 24012801921PR-PCS-MS |
| MASTER-SPORT GERMANY: | 24012801921PR-SET-MS |
| METELLI: | 23-0861C |
| NK: | 312370 |
| SKF: | VKBD 81301 V1 |
| SWAG: | 74 94 3893 |
| TEXTAR: | 92293903 |
| VALEO: | 672993 |
| ZIMMERMANN: | 230.2315.52 |
| BLUE PRINT: | ADA104377 |
| BLUE PRINT: | ADL144325 |
| BOSCH: | 0 986 479 G89 |
| BREMBO: | 09.D209.1X |
| CIFAM: | 800-861C |
| FEBI BILSTEIN: | 108664 |
| FEBI BILSTEIN: | 44036 |
| FERODO: | DDF2882C |
| FTE: | BS7867B |
| JAPANPARTS: | DI-0207C |
| JAPKO: | 600207C |
| MAGNETI MARELLI: | 361302040831 |
| MASTER-SPORT GERMANY: | 24012801921-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012801921-SET-MSP |
| MASTER-SPORT GERMANY: | 24012801921PR-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012801921PR-SET-MSP |
| MEYLE: | 15-15 521 0004/PD |
| OPTIMAL: | BS-8664C |
| SWAG: | 33 10 0148 |
| SWAG: | 74 94 4036 |
| VAICO: | V24-80016 |
| ZIMMERMANN: | 230.2315.20 |
