ATE 24.0126-0102.1 Brake Disc
EAN: 4006633283380
Dispatched on: est. 5 May, 2025
38.75 EUR
Inc. VAT 0%

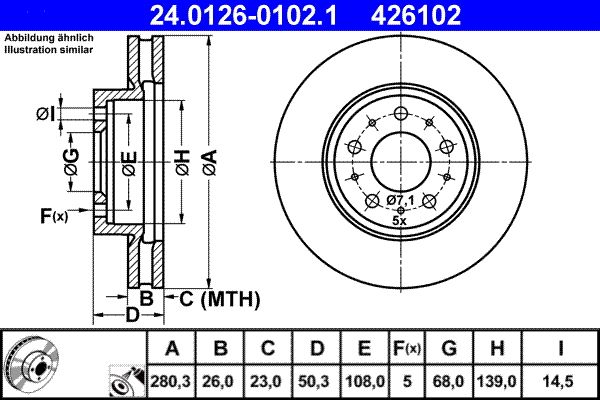

Technical Specifications
| Outer Diameter [mm]: | 280.3 |
| Minimum thickness [mm]: | 23 |
| Number of Holes: | 5 |
| MAPP code available: | |
| Height [mm]: | 50.3 |
| Inner Diameter [mm]: | 139 |
| Test Mark: | E1 90R-02C0115/0437 |
| Brake Disc Thickness [mm]: | 26 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Bolt Hole Circle Ø [mm]: | 108 |
| Centering Diameter [mm]: | 68 |
| Bore Diameter [mm]: | 14.5 |
Compatibility
Similar Spare Parts
| A.B.S.: | 16236 |
| ASHIKA: | 60-00-0347 |
| BLUE PRINT: | ADF124352 |
| BREMBO: | 09.5568.21 |
| BREMBO: | 09.5568.76 |
| CIFAM: | 800-375C |
| DELPHI: | BG2841C |
| FEBI BILSTEIN: | 11454 |
| FTE: | 9072227 |
| HELLA: | 8DD 355 103-681 |
| JAPANPARTS: | DI-0347 |
| JAPANPARTS: | DI0347JM |
| JAPKO: | 600347C |
| JURID: | 561866JC |
| KRAFT AUTOMOTIVE: | 6046380 |
| MAGNETI MARELLI: | 353616024250 |
| MASTER-SPORT GERMANY: | 24012601021-PCS-MS |
| MAXGEAR: | 19-0761 |
| MAXGEAR: | 19-0761SPORT |
| METZGER AUTOTEILE: | 6110253 |
| MEYLE: | 583 521 5012/PD |
| NK: | 314832 |
| OPTIMAL: | BS-4100C |
| QUARO: | QD6195 |
| REMSA: | 6410.10 |
| STELLOX: | 6020-4832V-SX |
| SWAG: | 55 91 1454 |
| TOMEX Brakes: | TX 71-98 |
| TRW: | DF2671 |
| VALEO: | 673298 |
| ZIMMERMANN: | 610.1195.52 |
| ABE: | C3V017ABE |
| ASHIKA: | 60-00-0347C |
| BOSCH: | 0 986 478 603 |
| BREMBO: | 09.5568.24 |
| CHAMPION: | 561866CH |
| DELPHI: | BG2841 |
| DENCKERMANN: | B130067 |
| FERODO: | DDF605C |
| FTE: | BS3912 |
| HELLA PAGID: | 8DD 355 103-681 |
| JAPANPARTS: | DI-0347C |
| JAPKO: | 600347 |
| JP GROUP: | 4963100400 |
| KAMOKA: | 1031210 |
| LPR: | V1283V |
| MAGNETI MARELLI: | 360406051400 |
| MASTER-SPORT GERMANY: | 24012601021-PCS-MSP |
| MAXGEAR: | 19-0761MAX |
| METELLI: | 23-0375C |
| MEYLE: | 515 521 5012 |
| NK: | 204832 |
| OPTIMAL: | BS-4100 |
| OPTIMAL: | BS-8058C |
| QUARO: | QD6195HC |
| SKF: | VKBD 80374 V2 |
| STELLOX: | 6020-4832VK-SX |
| TEXTAR: | 92066703 |
| TRISCAN: | 8120 27119C |
| VALEO: | 186526 |
| ZIMMERMANN: | 610.1195.20 |
