ATE 24.0125-0196.1 Brake Disc
EAN: 4006633337489
Dispatched on: est. 23 Jun, 2025
34.55 EUR
Inc. VAT 0%

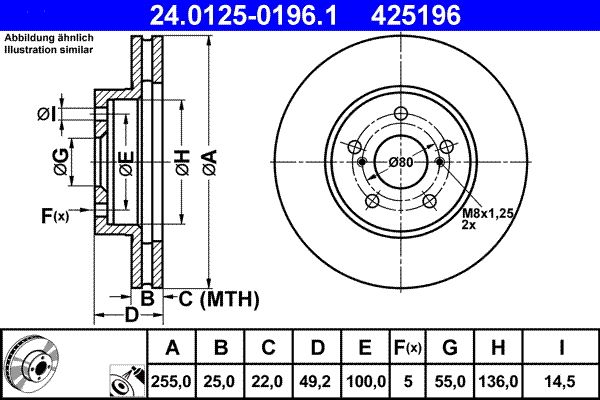

Technical Specifications
| Outer Diameter [mm]: | 255 |
| Minimum thickness [mm]: | 22 |
| Surface: | Coated |
| MAPP code available: | |
| Height [mm]: | 49.2 |
| Inner Diameter [mm]: | 136 |
| Test Mark: | E1 90R-02C0115/0392 |
| Brake Disc Thickness [mm]: | 25 |
| Brake Disc Type: | Vented |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 55 |
| Bore Diameter [mm]: | 14.5 |
OEN Number
| TOYOTA: | 43512-47040 |
Similar Spare Parts
| A.B.S.: | 16301 |
| ABAKUS: | 231-03-235-2 |
| BOSCH: | 0 986 479 663 |
| BREMBO: | 09.B494.11 |
| DENCKERMANN: | B130787 |
| FERODO: | DDF1882C |
| FTE: | 9082373 |
| HELLA PAGID: | 8DD 355 116-981 |
| JURID: | 562766JC |
| KAVO PARTS: | BR-9352-C |
| MAGNETI MARELLI: | 360406115500 |
| MAGNETI MARELLI: | 361302040763 |
| MASTER-SPORT GERMANY: | 24012501241-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012501241-SET-MSP |
| MAXGEAR: | 19-1243SPORT |
| METZGER AUTOTEILE: | 6110990 |
| NK: | 2045142 |
| OPTIMAL: | BS-9104 |
| SASIC: | 6106322 |
| STELLOX: | 6020-4539V-SX |
| SWAG: | 33 10 6945 |
| TRISCAN: | 8120 131046C |
| VALEO: | 197754 |
| ZIMMERMANN: | 590.2561.20 |
| ZIMMERMANN: | 590.2561.53 |
| ABAKUS: | 231-03-235 |
| BLUE PRINT: | ADT343135 |
| BREMBO: | 09.B494.10 |
| DELPHI: | BG4290 |
| FEBI BILSTEIN: | 170769 |
| FTE: | 9072507 |
| HELLA: | 8DD 355 116-981 |
| HERTH+BUSS JAKOPARTS: | J3302182 |
| KAMOKA: | 103083 |
| LPR: | T2062V |
| MAGNETI MARELLI: | 360406115501 |
| MASTER-SPORT GERMANY: | 24012501241-PCS-MS |
| MASTER-SPORT GERMANY: | 24012501241-SET-MS |
| MAXGEAR: | 19-1243 |
| MAXGEAR: | 19-3340 |
| MEYLE: | 30-15 521 0109 |
| NK: | 3145142 |
| OPTIMAL: | BS-9104C |
| SKF: | VKBD 80383 V2 |
| STELLOX: | 6020-4539VK-SX |
| TEXTAR: | 92225003 |
| TRW: | DF4877 |
| VALEO: | 672684 |
| ZIMMERMANN: | 590.2561.52 |
