ATE 24.0123-0104.1 Brake Disc
EAN: 4006633025744
Dispatched on: est. 5 May, 2025
43.59 EUR
Inc. VAT 0%

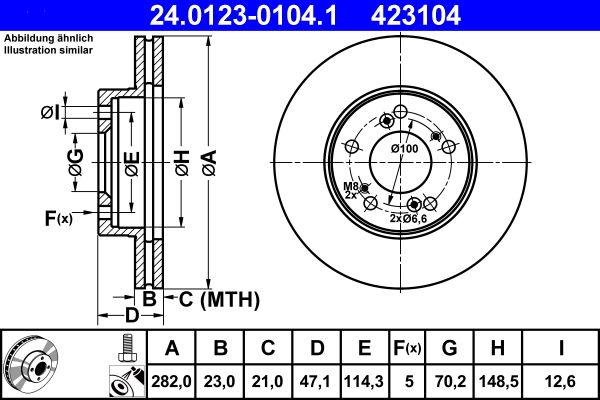

Technical Specifications
| Outer Diameter [mm]: | 282 |
| Minimum thickness [mm]: | 21 |
| Surface: | Coated |
| Supplementary Article/Info 2: | with bolts/screws |
| Bolt Hole Circle Ø [mm]: | 114.3 |
| Centering Diameter [mm]: | 70.2 |
| Bore Diameter [mm]: | 12.6 |
| Brake Disc Thickness [mm]: | 23 |
| Brake Disc Type: | Vented |
| Number of Holes: | 5 |
| MAPP code available: | |
| Height [mm]: | 47.1 |
| Inner Diameter [mm]: | 148.5 |
| Test Mark: | E1 90R-02C0115/0236 |
OEN Number
| HONDA: | 45251-SP0-000 |
| HONDA: | 45251-SZ3-000 |
| HONDA: | 45251-S2H-N00 |
| HONDA: | 45251-SZ3-E00 |
Compatibility
Similar Spare Parts
| A.B.S.: | 16588 |
| ABE: | C34033ABE |
| BLUE PRINT: | ADH24341 |
| BREMBO: | 09.6893.11 |
| CHAMPION: | 562143CH |
| DELPHI: | BG3061 |
| FERODO: | DDF829C |
| FTE: | BS4809 |
| HELLA PAGID: | 8DD 355 107-131 |
| JAPANPARTS: | DI-496C |
| JAPKO: | 60496C |
| KAVO PARTS: | BR-2256-C |
| LPR: | H1441V |
| MAGNETI MARELLI: | 360406027800 |
| MASTER-SPORT GERMANY: | 24012301041SE-SET-MSP |
| MAXGEAR: | 19-2554SPORT |
| METZGER AUTOTEILE: | 6110249 |
| NIPPARTS: | J3304033 |
| NK: | 202622 |
| OPTIMAL: | BS-5860 |
| REMSA: | 6586.10 |
| SKF: | VKBD 80429 V2 |
| STELLOX: | 6020-2622VK-SX |
| TRW: | DF4028 |
| VALEO: | 673278 |
| ZIMMERMANN: | 280.3160.52 |
| ABE: | C34012ABE |
| ASHIKA: | 60-04-496C |
| BOSCH: | 0 986 478 667 |
| BREMBO: | 09.6893.14 |
| CIFAM: | 800-503C |
| FEBI BILSTEIN: | 108428 |
| FTE: | 9072552 |
| HELLA: | 8DD 355 107-131 |
| HERTH+BUSS JAKOPARTS: | J3304033 |
| JAPANPARTS: | DI496JM |
| JURID: | 562143JC |
| KRAFT AUTOMOTIVE: | 6046645 |
| MAGNETI MARELLI: | 353611928240 |
| MASTER-SPORT GERMANY: | 24012301041SE-SET-MS |
| MAXGEAR: | 19-2554 |
| METELLI: | 23-0503C |
| MEYLE: | 31-15 521 0016 |
| NIPPARTS: | J3304037 |
| NK: | 312622 |
| OPTIMAL: | BS-5860C |
| SASIC: | 6106095 |
| STELLOX: | 6020-2622V-SX |
| TEXTAR: | 92101000 |
| VALEO: | 186778 |
| ZIMMERMANN: | 280.3160.20 |
