ATE 24.0122-0162.1 Brake Disc
EAN: 4006633069953
Dispatched on: est. 13 May, 2025
36.69 EUR
Inc. VAT 0%

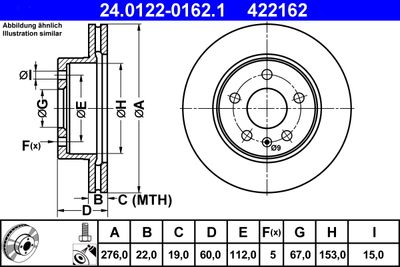

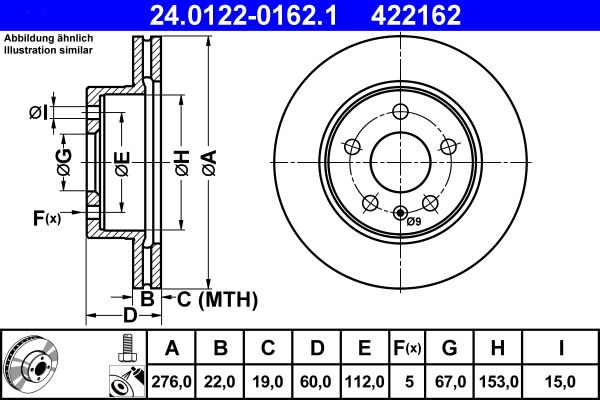

Technical Specifications
| Outer Diameter [mm]: | 276 |
| Minimum thickness [mm]: | 19 |
| Number of Holes: | 5 |
| Surface: | Coated |
| MAPP code available: | |
| Height [mm]: | 60 |
| Inner Diameter [mm]: | 153 |
| Test Mark: | E1 90R-02C0115/0184 |
| Brake Disc Thickness [mm]: | 22 |
| Brake Disc Type: | Vented |
| Machining: | Alloyed/High-carbon |
| Supplementary Article/Info 2: | with bolts/screws |
| Bolt Hole Circle Ø [mm]: | 112 |
| Centering Diameter [mm]: | 67 |
| Bore Diameter [mm]: | 15 |
OEN Number
| MERCEDES-BENZ: | 638 421 01 12 |
| MERCEDES-BENZ: | A 638 421 01 12 |
Compatibility
Similar Spare Parts
| A.B.S.: | 16887 |
| ABAKUS: | 231-03-037-2 |
| ALTE AUTOMOTIVE: | 128663FCAL |
| ASHIKA: | 60-00-0570C |
| BOSCH: | 0 986 478 861 |
| BOSCH: | 0 986 479 R95 |
| CHAMPION: | 562054CH |
| DELPHI: | BG3296 |
| DT Spare Parts: | 4.67725 |
| FERODO: | DDF860 |
| FTE: | 9072070 |
| FTE: | BS4670 |
| HELLA: | 8DD 355 104-521 |
| HELLA PAGID: | 8DD 355 104-521 |
| JAPANPARTS: | DI-0570C |
| JAPKO: | 600570 |
| JP GROUP: | 1363106700 |
| KAMOKA: | 1031720 |
| LPR: | M2641V |
| MAGNETI MARELLI: | 360406032200 |
| MASTER-SPORT GERMANY: | 24012201621-PCS-MS |
| MASTER-SPORT GERMANY: | 24012201621-SET-MS |
| MAXGEAR: | 19-0728 |
| MAXGEAR: | 19-0728SPORT |
| METZGER AUTOTEILE: | 6110407 |
| NK: | 203335 |
| OPTIMAL: | BS-4600 |
| PE Automotive: | 016.654-00A |
| REMSA: | 6460.10 |
| SKF: | VKBD 80239 V2 |
| STELLOX: | 6020-3335VK-SX |
| TEXTAR: | 92074403 |
| TOPRAN: | 400 857 |
| TRUCKTEC AUTOMOTIVE: | 02.35.074 |
| VAICO: | V30-80023 |
| VALEO: | 673482 |
| ABAKUS: | 231-03-037 |
| ABE: | C3M015ABE |
| ASHIKA: | 60-00-0570 |
| BLUE PRINT: | ADU174369 |
| BOSCH: | 0 986 479 B53 |
| BREMBO: | 09.6983.10 |
| CIFAM: | 800-416 |
| DENCKERMANN: | B130035 |
| FEBI BILSTEIN: | 10642 |
| FERODO: | DDF860C |
| FTE: | 9082114 |
| FTE: | BS4670B |
| HELLA: | 8DD 355 127-231 |
| JAPANPARTS: | DI-0570 |
| JAPANPARTS: | DI0570JM |
| JAPKO: | 600570C |
| JURID: | 562054JC |
| KRAFT AUTOMOTIVE: | 6041400 |
| MAGNETI MARELLI: | 353612834240 |
| MAGNETI MARELLI: | 361302040372 |
| MASTER-SPORT GERMANY: | 24012201621-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012201621-SET-MSP |
| MAXGEAR: | 19-0728MAX |
| METELLI: | 23-0416 |
| MEYLE: | 015 521 2034 |
| NK: | 313335 |
| OPTIMAL: | BS-4600HC |
| QUARO: | QD6532 |
| SBP: | 02-ME019 |
| STELLOX: | 6020-3335V-SX |
| SWAG: | 10 91 0642 |
| TOMEX Brakes: | TX 70-52 |
| TRISCAN: | 8120 23138C |
| TRW: | DF2797 |
| VALEO: | 186551 |
| ZIMMERMANN: | 400.1448.20 |
