ATE 24.0122-0158.1 Brake Disc
EAN: 4006633068338
Dispatched on: est. 20 Jun, 2025
28.08 EUR
Inc. VAT 0%

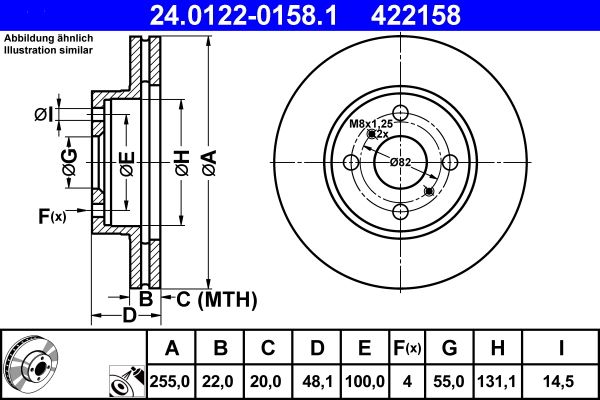

Technical Specifications
| Outer Diameter [mm]: | 255 |
| Minimum thickness [mm]: | 20 |
| Surface: | Coated |
| MAPP code available: | |
| Height [mm]: | 48.1 |
| Inner Diameter [mm]: | 131.1 |
| Test Mark: | E1 90R-02C0115/0373 |
| Brake Disc Thickness [mm]: | 22 |
| Brake Disc Type: | Vented |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 55 |
| Bore Diameter [mm]: | 14.5 |
OEN Number
| TOYOTA: | 43512-12550 |
Compatibility
Similar Spare Parts
| A.B.S.: | 16234 |
| ASHIKA: | 60-02-233C |
| BOSCH: | 0 986 478 578 |
| BREMBO: | 09.5736.14 |
| CIFAM: | 800-439 |
| DENCKERMANN: | B130109 |
| FERODO: | DDF794 |
| FTE: | 9072065 |
| HELLA: | 8DD 355 104-871 |
| HERTH+BUSS JAKOPARTS: | J3302033 |
| JAPANPARTS: | DI233JM |
| JURID: | 561968JC |
| KAVO PARTS: | BR-9355-C |
| LPR: | T2071V |
| MAGNETI MARELLI: | 360406047000 |
| MASTER-SPORT GERMANY: | 24012201581-PCS-MS |
| MASTER-SPORT GERMANY: | 24012201581-SET-MS |
| MAXGEAR: | 19-0971 |
| METELLI: | 23-0439 |
| MEYLE: | 30-15 521 0035 |
| NK: | 204543 |
| OPTIMAL: | BS-5390C |
| SASIC: | 6106060 |
| STELLOX: | 6020-4543V-SX |
| SWAG: | 81 91 1893 |
| TEXTAR: | 92077203 |
| TRISCAN: | 8120 13139C |
| VALEO: | 186701 |
| ZIMMERMANN: | 590.2560.20 |
| ABE: | C32033ABE |
| BLUE PRINT: | ADT34370 |
| BREMBO: | 09.5736.11 |
| CHAMPION: | 561968CH |
| DELPHI: | BG2891 |
| FEBI BILSTEIN: | 11893 |
| FERODO: | DDF794C |
| FTE: | 9082395 |
| HELLA PAGID: | 8DD 355 104-871 |
| JAPANPARTS: | DI-233C |
| JAPKO: | 60233C |
| KAMOKA: | 1031588 |
| KRAFT AUTOMOTIVE: | 6043850 |
| MAGNETI MARELLI: | 353615274240 |
| MAGNETI MARELLI: | 360406047001 |
| MASTER-SPORT GERMANY: | 24012201581-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012201581-SET-MSP |
| MAXGEAR: | 19-0971SPORT |
| METZGER AUTOTEILE: | 6110212 |
| NIPPARTS: | J3302033 |
| NK: | 314543 |
| REMSA: | 6539.10 |
| SKF: | VKBD 80771 V2 |
| STELLOX: | 6020-4543VK-SX |
| TEXTAR: | 92077200 |
| TOMEX Brakes: | TX 71-32 |
| TRW: | DF2658 |
| VALEO: | 673171 |
| ZIMMERMANN: | 590.2560.52 |
