ATE 24.0118-0120.1 Brake Disc
EAN: 4006633007849
Dispatched on: est. 16 Jun, 2025
25.23 EUR
Inc. VAT 0%

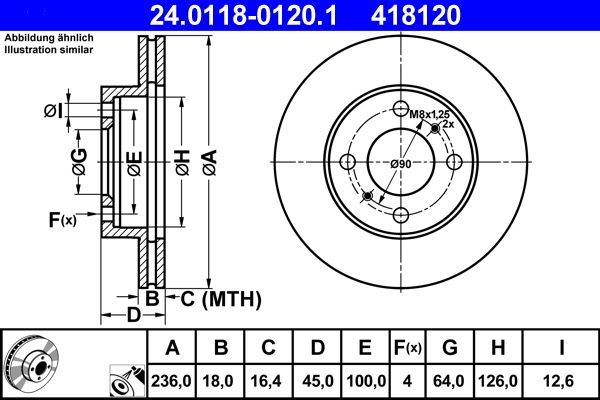

Technical Specifications
| Outer Diameter [mm]: | 236 |
| Minimum thickness [mm]: | 16.4 |
| Surface: | Coated |
| MAPP code available: | |
| Height [mm]: | 45 |
| Inner Diameter [mm]: | 126 |
| Test Mark: | E1 90R-02C0115/0121 |
| Brake Disc Thickness [mm]: | 18 |
| Brake Disc Type: | Vented |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 64 |
| Bore Diameter [mm]: | 12.6 |
OEN Number
Compatibility
Similar Spare Parts
| A.B.S.: | 16483 |
| ASHIKA: | 60-05-532 |
| BLUE PRINT: | ADC44342 |
| BREMBO: | 09.7056.10 |
| BREMBO: | 09.7056.75 |
| CIFAM: | 800-505C |
| DELPHI: | BG3111 |
| FEBI BILSTEIN: | 10872 |
| FTE: | 9072256 |
| HELLA: | 8DD 355 105-771 |
| HERTH+BUSS JAKOPARTS: | J3305032 |
| JAPANPARTS: | DI-532C |
| JAPKO: | 60532 |
| JURID: | 562011JC |
| KRAFT AUTOMOTIVE: | 6044270 |
| MAGNETI MARELLI: | 353613036240 |
| MAGNETI MARELLI: | 360406034301 |
| MAXGEAR: | 19-0732SPORT |
| METZGER AUTOTEILE: | 6110143 |
| NIPPARTS: | J3305032 |
| NK: | 313021 |
| OPTIMAL: | BS-5570C |
| STELLOX: | 6020-3021V-SX |
| SWAG: | 80 91 0872 |
| TOMEX Brakes: | TX 70-98 |
| TRW: | DF4022 |
| ABE: | C35032ABE |
| ASHIKA: | 60-05-532C |
| BOSCH: | 0 986 478 572 |
| BREMBO: | 09.7056.11 |
| CHAMPION: | 562011CH |
| DELPHI: | BG2810 |
| DENCKERMANN: | B130129 |
| FERODO: | DDF1005C |
| FTE: | 9082334 |
| HELLA PAGID: | 8DD 355 105-771 |
| JAPANPARTS: | DI-532 |
| JAPANPARTS: | DI532JM |
| JAPKO: | 60532C |
| KAVO PARTS: | BR-5724-C |
| LPR: | D1321V |
| MAGNETI MARELLI: | 360406034300 |
| MAXGEAR: | 19-0732 |
| METELLI: | 23-0505C |
| MEYLE: | 32-15 521 0006 |
| NK: | 203021 |
| OPTIMAL: | BS-5570 |
| REMSA: | 6557.10 |
| STELLOX: | 6020-3021VK-SX |
| TEXTAR: | 92089400 |
| TRISCAN: | 8120 42116C |
| VALEO: | 186818 |
