ATE 24.0110-0320.1 Brake Disc
EAN: 4006633293167
Dispatched on: est. 31 Jul, 2025
37.08 EUR
Inc. VAT 0%

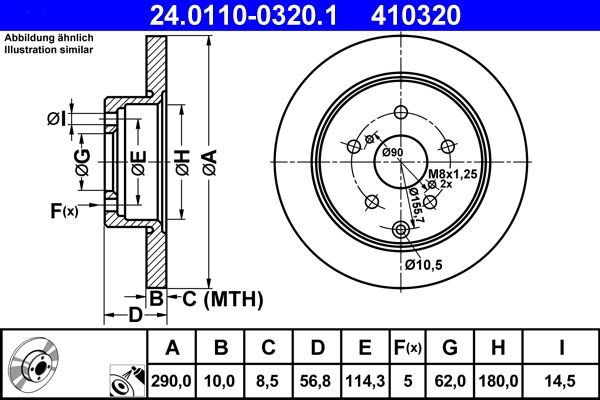

Technical Specifications
| Outer Diameter [mm]: | 290 |
| Minimum thickness [mm]: | 8.5 |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 114.3 |
| Centering Diameter [mm]: | 62 |
| Bore Diameter [mm]: | 14.5 |
| Test Mark: | E1 90R-02C0248/1007 |
| Brake Disc Thickness [mm]: | 10 |
| Brake Disc Type: | solid |
| Surface: | Coated |
| Height [mm]: | 56.8 |
| Inner Diameter [mm]: | 180 |
| MAPP code available: |
OEN Number
| TOYOTA: | 42431-0F010 |
Compatibility
Similar Spare Parts
| A.B.S.: | 17609 |
| ALTE AUTOMOTIVE: | 128272FCAL |
| BLUE PRINT: | ADT343196 |
| BREMBO: | 08.A354.10 |
| CIFAM: | 800-771C |
| FEBI BILSTEIN: | 27238 |
| FERODO: | DDF1409C |
| FTE: | 9082170 |
| HELLA PAGID: | 8DD 355 119-021 |
| JAPANPARTS: | DP-231C |
| JP GROUP: | 4863201500 |
| KAMOKA: | 103397 |
| KRAFT AUTOMOTIVE: | 6053716 |
| MAGNETI MARELLI: | 360406062000 |
| MASTER-SPORT GERMANY: | 24011003201-PCS-MSP |
| MASTER-SPORT GERMANY: | 24011003201-SET-MSP |
| MAXGEAR: | 19-2453SPORT |
| METZGER AUTOTEILE: | 6110455 |
| NIPPARTS: | J3312053 |
| NK: | 3145112 |
| QUARO: | QD1345 |
| SASIC: | 6106320 |
| STELLOX: | 6020-1446-SX |
| SWAG: | 81 92 7238 |
| TOMEX Brakes: | TX 73-24 |
| TRW: | DF4446 |
| VALEO: | 673261 |
| ABE: | C42050ABE |
| ASHIKA: | 61-02-231C |
| BOSCH: | 0 986 479 448 |
| CHAMPION: | 562431CH |
| DELPHI: | BG4051 |
| FERODO: | DDF1409 |
| FTE: | 9072234 |
| HELLA: | 8DD 355 119-021 |
| HERTH+BUSS JAKOPARTS: | J3312053 |
| JAPKO: | 61231C |
| JURID: | 562431JC |
| KAVO PARTS: | BR-9431-C |
| LPR: | T2039P |
| MASTER-SPORT GERMANY: | 24011003201-PCS-MS |
| MASTER-SPORT GERMANY: | 24011003201-SET-MS |
| MAXGEAR: | 19-2453 |
| METELLI: | 23-0771C |
| MEYLE: | 30-15 523 0082 |
| NK: | 2045112 |
| OPTIMAL: | BS-8648C |
| REMSA: | 61088.00 |
| SKF: | VKBD 90391 S2 |
| STELLOX: | 6020-1446K-SX |
| TEXTAR: | 92164803 |
| TRISCAN: | 8120 13192C |
| VALEO: | 197348 |
| ZIMMERMANN: | 590.2593.20 |
