ATE 24.0110-0203.1 Brake Disc
EAN: 4006633142908
Dispatched on: est. 23 Jun, 2025
20.76 EUR
Inc. VAT 0%

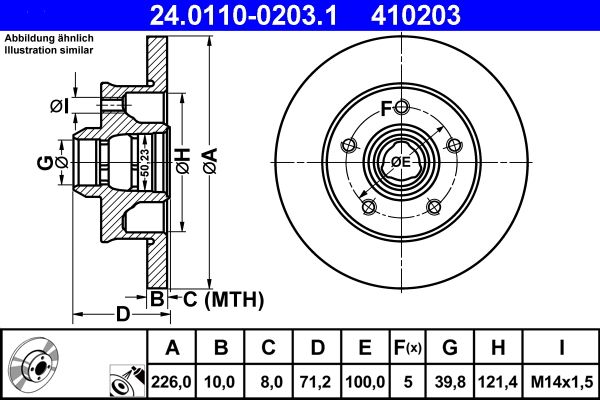

Technical Specifications
| Outer Diameter [mm]: | 226 |
| Minimum thickness [mm]: | 8 |
| Surface: | Coated |
| Supplementary Article/Info 2: | without ABS sensor ring |
| Height [mm]: | 71.2 |
| Support plate diameter [mm]: | 50.2 |
| Thread Size: | M14x1,5 |
| Brake Disc Thickness [mm]: | 10 |
| Brake Disc Type: | solid |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 39.8 |
| Inner Diameter [mm]: | 121.4 |
| MAPP code available: |
OEN Number
| SEAT: | 357 615 601 B |
| VAG: | 357 615 601 B |
Similar Spare Parts
| A.B.S.: | 16081 |
| ASHIKA: | 61-00-0923 |
| BLUE PRINT: | ADV184380 |
| BREMBO: | 08.5005.20 |
| DELPHI: | BG2714 |
| FEBI BILSTEIN: | 11394 |
| FTE: | 9071109 |
| HELLA: | 8DD 355 102-751 |
| JAPANPARTS: | DP-0923 |
| JAPANPARTS: | DP0923JM |
| JAPKO: | 610923C |
| JURID: | 561620JC-1 |
| LPR: | V2243P |
| MAGNETI MARELLI: | 360406048400 |
| MASTER-SPORT GERMANY: | 24011002031-PCS-MSP |
| MASTER-SPORT GERMANY: | 24011002031-SET-MSP |
| MAXGEAR: | 19-0977SPORT |
| MEYLE: | 115 523 1041 |
| NK: | 204736 |
| OPTIMAL: | BS-0250C |
| REMSA: | 6025.00 |
| STELLOX: | 6020-4736-SX |
| TEXTAR: | 92057200 |
| TRISCAN: | 8120 291027C |
| VAICO: | V10-40032 |
| VALEO: | 673200 |
| ZIMMERMANN: | 600.3201.52 |
| ABE: | C4W003ABE |
| ASHIKA: | 61-00-0923C |
| BOSCH: | 0 986 478 332 |
| CHAMPION: | 561620CH |
| DENCKERMANN: | B130263 |
| FERODO: | DDF266C-1 |
| FTE: | 9071186 |
| HELLA PAGID: | 8DD 355 102-751 |
| JAPANPARTS: | DP-0923C |
| JAPKO: | 610923 |
| JURID: | 561620JC |
| KRAFT AUTOMOTIVE: | 6050050 |
| MAGNETI MARELLI: | 353615816550 |
| MASTER-SPORT GERMANY: | 24011002031-PCS-MS |
| MASTER-SPORT GERMANY: | 24011002031-SET-MS |
| MAXGEAR: | 19-0977 |
| METZGER AUTOTEILE: | 6110232 |
| NK: | 2047119 |
| NK: | 314736 |
| QUARO: | QD0803 |
| SKF: | VKBD 90126 S2 |
| SWAG: | 30 91 1394 |
| TOPRAN: | 103 527 |
| TRW: | DF1540 |
| VALEO: | 186517 |
| ZIMMERMANN: | 600.3201.20 |
